Empirum-ServiceBus Service

Attention: In order to successfully install the Empirum ServiceBus service, the configuration steps in Matrix42_RabbitMQ_Step_by_Step_Install_Guide_EN.pdf must be carried out first!

The Empirum ServiceBus service monitors changes to computers, software packages and installation status in the database and sends this information via a service bus system (Microsoft Azure Service Bus or RabbitMQ) to UUX for UEM.

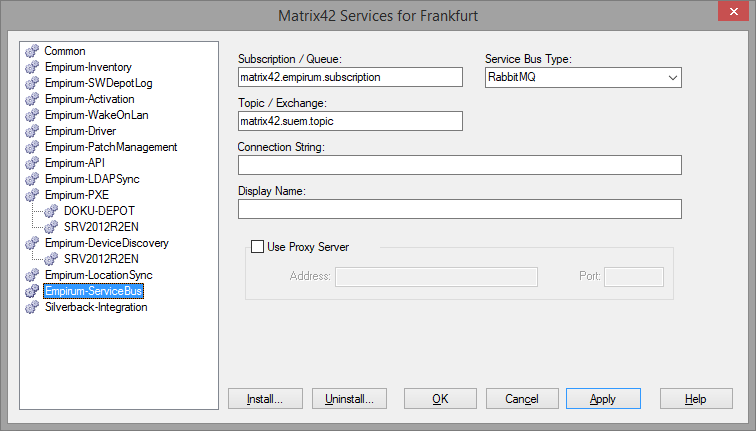

• Subscription / Queue

Messages are received by this subscription.

• Service Bus-Type

The Cloud-based Microsoft Azure Service Bus or on-premises RabbitMQ systems are currently supported.

RabbitMQ is an open source message broker.

• Topic / Exchange

Messages are published to this topic and sent to one or more associated subscriptions.

• Connection String

String to establish a connection with the previously selected service bus type. To establish a secure connection via RabbitMQ, amqps:// must be used instead of amqp://.

Special characters in the password must be URL-encoded (also called percentage encoding).

To get the Microsoft Azure connection string for the topics, open your browser and

• Go to Microsoft Azure https://portal.azure.com/?l=en.en-us#home.
• Select your Service Bus Namespace.
• Create a new topic, which will be used.
• Select the topic.
• Click on "Shared Access Policies" and select your policy.
• Add a new SAS policy.

Note: If you have used the included PowerShell script, this was already added.

• Click on the created policy and on the right Keys and Connection Strings will be shown.
• Copy a Connection String (primary or secondary connection string).

After the automated installation via RabbitMQ_InstallPackage.exe, the RabbitMQ server is also configured with standard values for the message exchange - except for the username and his password (these are requested during the script execution).

• The standard connection string based on this installation and configuration looks like this:

amqp://<Username>:<Password>@<FQDN of your RabbitMQ-Server>/matrix42

• Display Name

Optionally, you can specify a unique name for the ServiceBus service here.

If this value is set, it is communicated via the ESB Heartbeat response. If this field remains empty, the Empirum default name is transmitted (%ServerName%\%StandortName%).

• Use Proxy Server

Configure the ServiceBus service to use a proxy server.

• Address: Enter the address of the proxy server.
• Port: Enter the port number of the proxy server.

After entering all parameters, click Apply, then click Install.

Your information is written to the database via the Apply button.
